    Sheet metal design may appear straightforward because most parts begin as flat pieces of metal. In reality, creating a reliable and economical sheet metal component requires careful consideration of material behavior, manufacturing limits, assembly methods, and real-world use. A part that looks perfect in a CAD model may become difficult to bend, expensive to produce, or impossible to assemble once it reaches the factory floor.To get more news about sheet metal design guidelines, you can visit jcproto.com official website.

    In my view, the most successful sheet metal designs are not necessarily the most complicated. They are the ones that achieve the required function with fewer bends, practical tolerances, accessible fasteners, and features that match the capabilities of standard manufacturing equipment.

    Begin with the Right Material and Thickness

    Material selection affects nearly every later design decision. Common options include mild steel, stainless steel, aluminum, copper, and galvanized steel. Each material has different characteristics related to strength, corrosion resistance, weight, appearance, conductivity, and forming behavior.

    Mild steel is affordable and easy to form, making it suitable for brackets, frames, cabinets, and general industrial products. Stainless steel offers better corrosion resistance but often requires greater forming force and more careful tooling. Aluminum is lightweight and naturally corrosion resistant, although some grades may crack when bent too tightly.

    Thickness should be chosen according to structural requirements rather than appearance alone. Using material that is too thin can cause vibration, distortion, or weak fastening points. Material that is unnecessarily thick increases weight, raw material cost, cutting time, and bending force. Designers should consider whether ribs, hems, flanges, or formed channels could improve stiffness without increasing the overall thickness.

    Respect Minimum Bend Radii

    Every sheet metal bend stretches the outside surface and compresses the inside surface. If the inside bend radius is too small, the material may crack, especially when bending harder aluminum or stainless steel.

    A practical starting point is to use an inside bend radius approximately equal to the sheet thickness. However, the correct value depends on the material grade, temper, grain direction, tooling, and bending method. Softer metals can usually accept tighter bends, while harder materials need larger radii.

    Designers should also avoid placing bends too close together. Narrow spaces between bends may not leave enough room for press brake tooling. Even when the geometry is theoretically possible, it may require special tools, extra setup time, or secondary operations.

    Understand Bend Allowance and K-Factor

    When a flat sheet is bent, its final dimensions cannot be calculated by simply adding the lengths of the straight sections. Material deformation changes the required flat pattern size. Bend allowance, bend deduction, and K-factor are therefore essential to accurate development.

    The K-factor represents the location of the neutral axis within the material thickness. This neutral axis does not stretch or compress during bending. Its position varies according to material, thickness, bend radius, and forming process.

    CAD software can calculate flat patterns automatically, but designers should not rely on default settings without consulting the manufacturer. A factory may use its own tested bend tables based on specific machines and tooling. Coordinating these values early can prevent dimensional errors during production.

    Position Holes Away from Bend Lines

    Holes, slots, and cutouts located too close to a bend may become stretched, oval, or distorted. As a general guideline, the distance from a hole edge to the bend line should include the bend radius plus at least one or more material thicknesses.

    This distance may need to be increased for large holes, thick material, or severe bends. When space is limited, a relief cut may help control deformation. However, relief features should be designed carefully because poorly placed cuts can weaken the part or create sharp edges.

    Hole diameter is another important consideration. Very small holes are difficult to punch cleanly in thick sheet metal and may increase tool wear. Laser cutting offers greater flexibility, but extremely narrow slots can still produce excessive heat or poor edge quality.

    Use Bend Reliefs at Corners

    When a bend ends near the edge of a sheet, concentrated stress can cause tearing, bulging, or uncontrolled deformation. Bend reliefs remove a small amount of material near the bend termination, allowing the metal to form more predictably.

    Rectangular and rounded reliefs are common. Rounded reliefs generally reduce stress concentration, while rectangular reliefs are simple to manufacture. The relief should usually extend slightly beyond the bend line and have a width related to the material thickness.

    Reliefs may seem like minor details, but they often make the difference between a clean production bend and a visibly damaged corner.

    Simplify the Number and Direction of Bends

    Every bend adds manufacturing time, setup effort, and dimensional variation. Parts with many bend directions may require repeated repositioning or specialized tooling. Whenever possible, bends should be arranged so they can be completed with fewer machine setups.

    A complicated enclosure made from one piece may appear elegant, but splitting it into two simple components can sometimes reduce production cost and improve dimensional accuracy. The additional joint may be created with screws, rivets, tabs, spot welds, or clinching fasteners.

    Good design is not about minimizing the number of parts at all costs. It is about finding the most efficient balance between part count, tooling, assembly, strength, and maintenance.

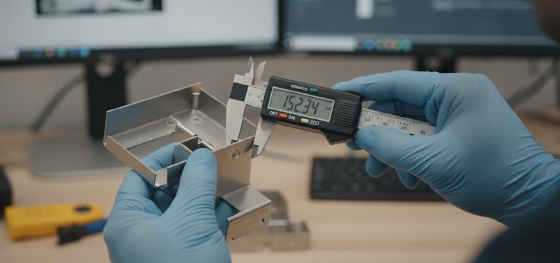

    Apply Realistic Tolerances

    Overly tight tolerances are a common source of unnecessary expense. Sheet metal dimensions can vary because of material thickness, springback, machine setup, bend sequence, and operator handling. Dimensions measured across several bends normally accumulate more variation than dimensions located on a single flat surface.

    Critical tolerances should be applied only where they affect fit, function, alignment, sealing, or safety. Noncritical features should use standard manufacturing tolerances. Designers should also dimension holes and functional surfaces from consistent reference points instead of creating long tolerance chains.

    Design for Assembly and Finishing

    A sheet metal part is rarely used alone. Designers must consider access for tools, screws, rivets, weld guns, and inspection equipment. Fasteners placed too close to walls or corners may be impossible to install. Welded joints must also allow enough space for heat control and finishing.

    Surface treatments such as powder coating, anodizing, plating, painting, and passivation can change dimensions or require drainage and hanging points. Powder coating adds thickness, which may affect tight-fitting tabs, hinges, and threaded holes. Masking may be necessary around grounding surfaces or precision interfaces.

    Ultimately, sheet metal design should be treated as a collaboration between engineering and manufacturing. Early communication with fabricators can reveal tooling limits, lower-cost alternatives, and potential quality problems before production begins. A thoughtful design saves more than material; it reduces rework, shortens lead times, improves assembly, and creates a product that performs consistently throughout its service life.
